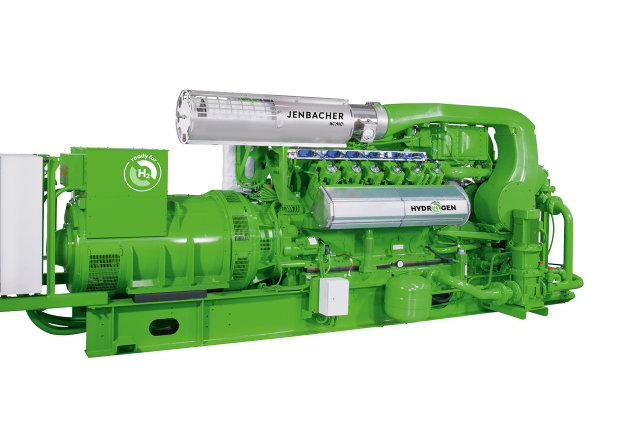

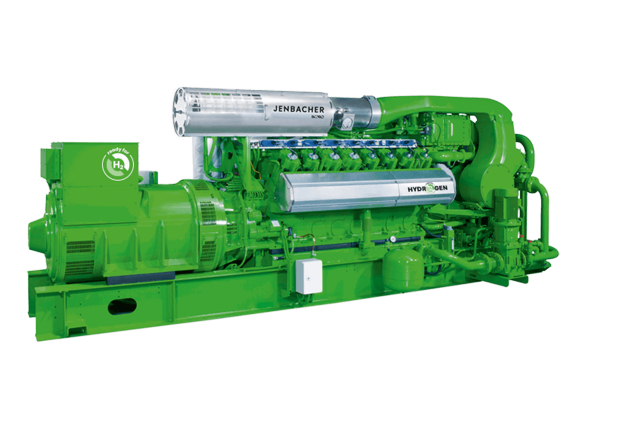

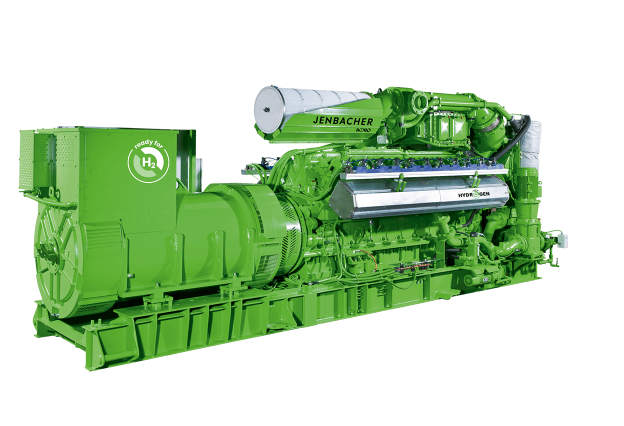

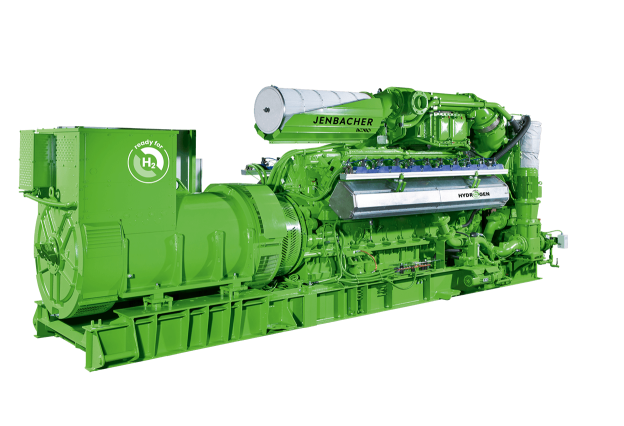

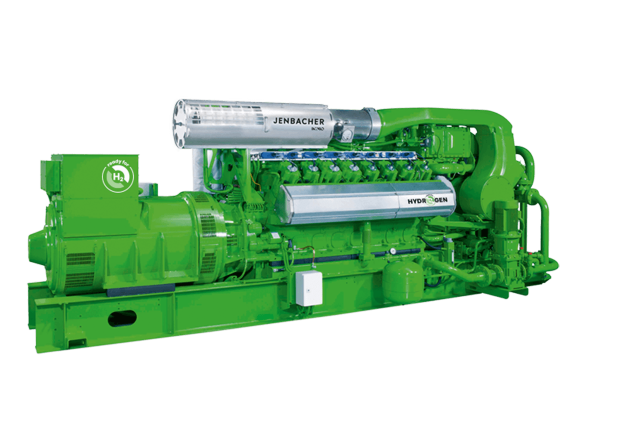

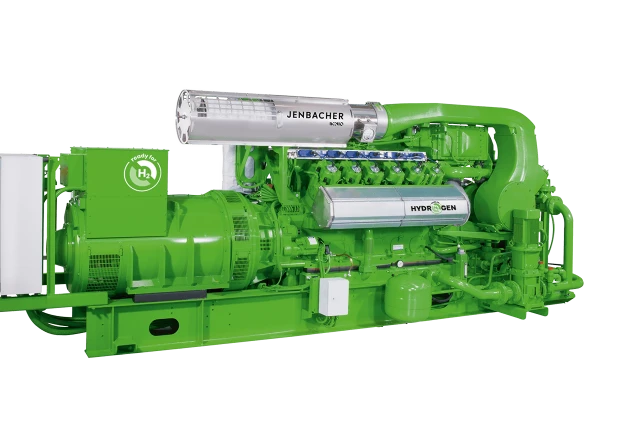

Jenbacher Type 4

Based on the proven design concepts of Jenbacher Type 3 and Type 6 engines, Type 4 gas engines are characterized by high power density and outstanding efficiency.

Enhanced control and monitoring provide easy maintenance capabilities, as well as excellent reliability and availability.
5,800+ engines delivered since 2002.

Change the scope of supply by clicking on a thumbnail.

Scope of supply:

50 Hz

60 Hz

* Provided technical data is for information only. Data ranges are calculated considering various gas quality levels and ambient conditions (standard or hot/tropical conditions, etc.).
Jenbacher can change the technical data unilaterally. In the case of such change, we will update the data on our pages as soon as we can.
Please reach out to our experts to get help with engines selection, obtain the technical parameters for your gas composition.

Output and efficiency at generator terminals. Energy input is according to DIN ISO 3046 and DIN 6271, respectively, with a tolerance of + 5%.
All data according to full load and subject to technical development and modification.
Based on emission values of 250 and 500 mg/Nm3 NOx at 5% O2 at dry exhaust gas.
Base for biogas and sewage gas versions: 65% CH4 / 35% CO₂.
Base for landfill gas version: 55% CH4 / 40% CO₂ / Rest N2.

Electrical Output851 - 1,429 kW

Thermal Output916 - 1,672 kW

Voltage480V - 13.8kV

Electrical Efficiencyup to 41.9 %

Thermal Efficiencyup to 48 %

Discover models:

Highlights of Jenbacher Type 4 engines

Jenbacher Type 4 engines have the same design, emissions control, and waste gas-to-energy capabilities as their Type 2 and Type 3 counterparts, plus high power density and outstanding efficiency in their power range.

The high-power turbocharger allows optimal operation at higher air intake temperature and altitude.
A hour-valve cylinder heads features enhanced swirl and channel geometry using advanced calculation and simulation methods, resulting in optimal cooling and combustion conditions.
The Type 4’s connecting rod reduces bearing wear and is easy to maintain.

Applicable gas types include: natural gas, associated petroleum gas (flare gas), propane, biogas, sewage gas, landfill gas, coal mine gas, other special gases (e.g. coke, wood, and pyrolysis gases).

Scope of supply:

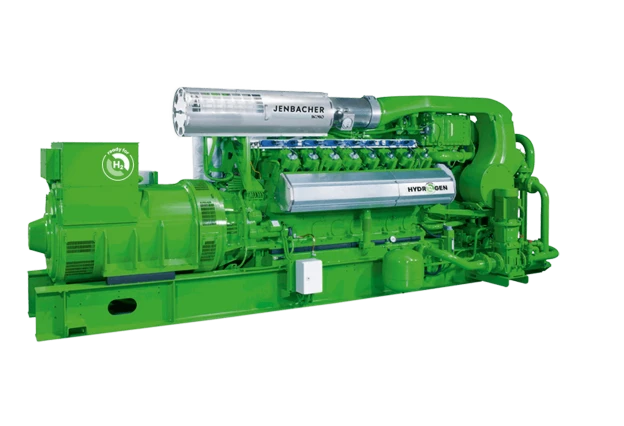

Combined Heat and Power Module (CHP Module) solutions allow customers to generate power and heat simultaneously at a very high total efficiencies, reaching 90% and even more.

Usual scope of supply:

Engine and alternator installed on the frame
Control panel, gas train
Heat exchangers including exhaust gas heat exchanger

CHP Modules can generate hot water or steam at various parameters and can be integrated with your existing heat infrastructure. You can select the option that fits your project’s needs among the various heat recovery schemes provided by Jenbacher.

The scope of supply can be extended further with various balance of plant options (BOP), reach out to our specialists for help in selecting scope of supply and BOP options to fulfill your project’s needs.

CHP Modules can be installed inside a building or inside a container. To see more details about Jenbacher’s containerized solutions, click here.

Balance of Plant (BOP)

The right auxiliary equipment is of critical importance in ensuring that a power solution is economically feasible and provides your business with reliability, availability, and efficiency. Click on the provided BOP options to learn more.
Reach out to our experts to select the configuration that fits your business’ needs.

Available BOP elements may vary, depending on the engine and application type.

Activated carbon absorber

Gas train

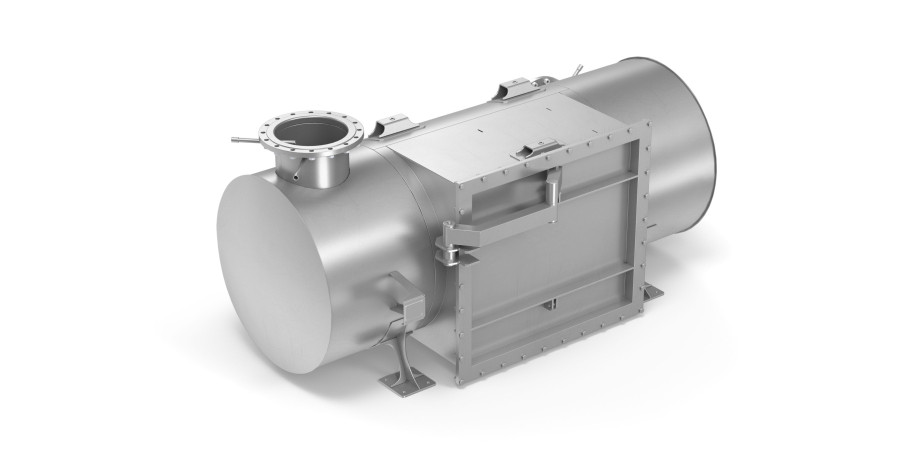

SCR & Oxidation catalyst box

Exhaust gas heat exchanger

Control solutions

Cooling system (radiators)

CL.AIR - Exhaust gas treatment

Exhaust gas silencer

Activated carbon absorber

Gas train

SCR & Oxidation catalyst box

Exhaust gas heat exchanger

Control solutions

Cooling system (radiators)

CL.AIR - Exhaust gas treatment

Exhaust gas silencer

Proven Efficiency
Offering superior efficiency with an innovative engine concept, Type 4 engines save on fuel without sacrificing flexibility or reliability.
The flexibility to do more
The Type 4 is available in 50 and 60 Hz and features fuel and solution flexibility—making it an excellent choice for more than 10 different applications.
Reliability you can count on
With their reliability, dependability and high degree of availability, it’s easy to see why over 2,000 Type 4 engines have been delivered.

Type 4 Case studies

Hyosung (KOR)

DECARBONIZING HEAVY INDUSTRY
with Asia Pacific’s first 100% hydrogen engine power plant
Location
Ulsan, South Korea
Installed engines

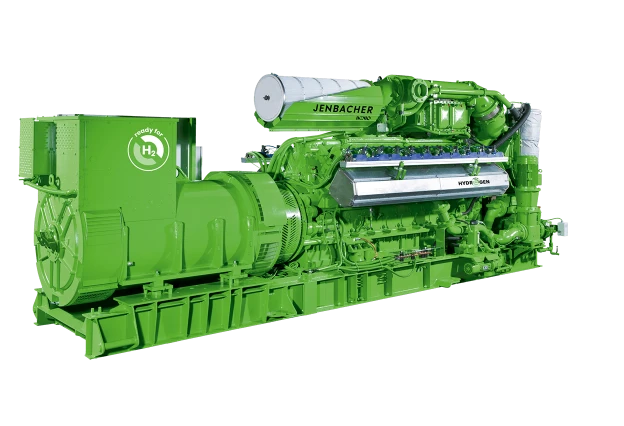

1 x J420
Electrical output
up to 1,042 MW
Thermal output
1,136 MW
Energy source
100% hydrogen
Commissioned
2024

Hyosung (KOR),Learn more
La Cira (COL)

TURNING FLARE GAS INTO POWER
for lower energy costs, greater reliability, and reduced emissions
Location
La Cira, Colombia
Installed engines
11 x J420
Electrical output
14.6 MW
Electrical efficiency
40.8%
Energy source
Flare gas
Commissioned
2016, 2022

La Cira (COL),Learn more
Mavrorachi Landfill (GRC)

USING LANDFILL GAS FOR POWER GENERATION TO LOWER GREENHOUSE GAS EMISSIONS
Sustainable HELECTOR project with Jenbacher engines in Greece wins global environmental award
Location
Thessaloniki, Greece
Installed engines
3 x J416
Electrical output
3.52 MW
Electrical efficiency
42%
Energy source
Landfill gas
Commissioned
2020

Mavrorachi Landfill (GRC),Learn more
Agrotor (HND)

HONDURAN EDIBLE VEGETABLE OIL EXTRACTION PLANT
uses waste byproduct for power generation
Location
San Alejo, Atlantida, Honduras
Installed engines
1 x J420, 1 x J316
Electrical output
2,272 kW
Total efficiency
up to 40.1%
Energy source
Biogas
Commissioned
2019, 2008

Agrotor (HND),Learn more

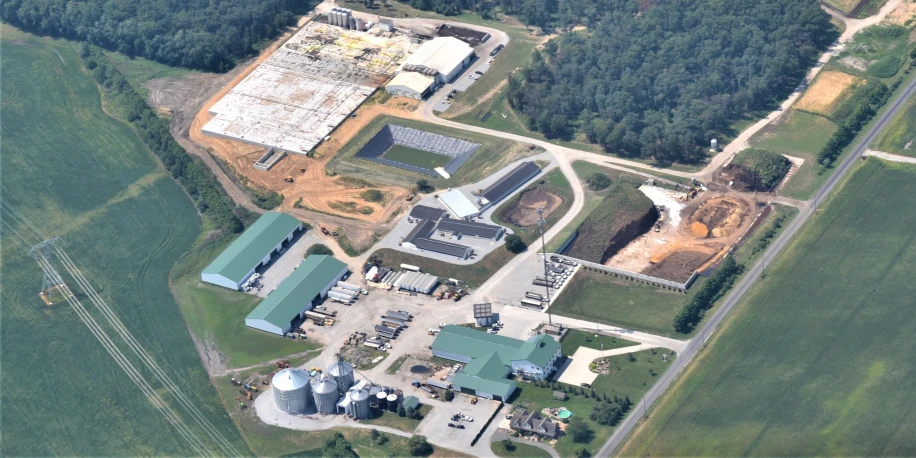

Biotown (USA)

SUPPORTING THE CONVERSION OF WASTE
to power and heat from RNG/biomethane
Location
Indiana, USA
Installed engines
1 x J420, 6 x J320
Electrical output
1,429 kW; 6,357 kW
Thermal output
5,388 MBTU/hr; 12,751 MBTU/hr (hot water)
Total efficiency
85.2%
Energy source
Biogas
Commissioned
2011, 2014, 2020, 2023

Biotown (USA),Learn more
Den Berk Délice (BEL)

FUELING GREENHOUSE OPERATIONS
with combined heat and power
Location
Den Berk Délice, Belgium
Installed engines
6 x J416, 2 x J624
Electrical output
16,482 kW
Thermal output
20,948 kW
Total efficiency
102.3% (44.5% electricity, 57.8% heat)
Energy source
Pipeline gas
Commissioned
2017, 2022

Den Berk Délice (BEL),Learn more

Find all Jenbacher case studies

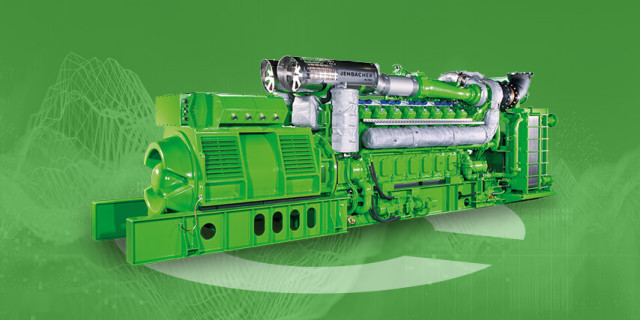

Our Services
